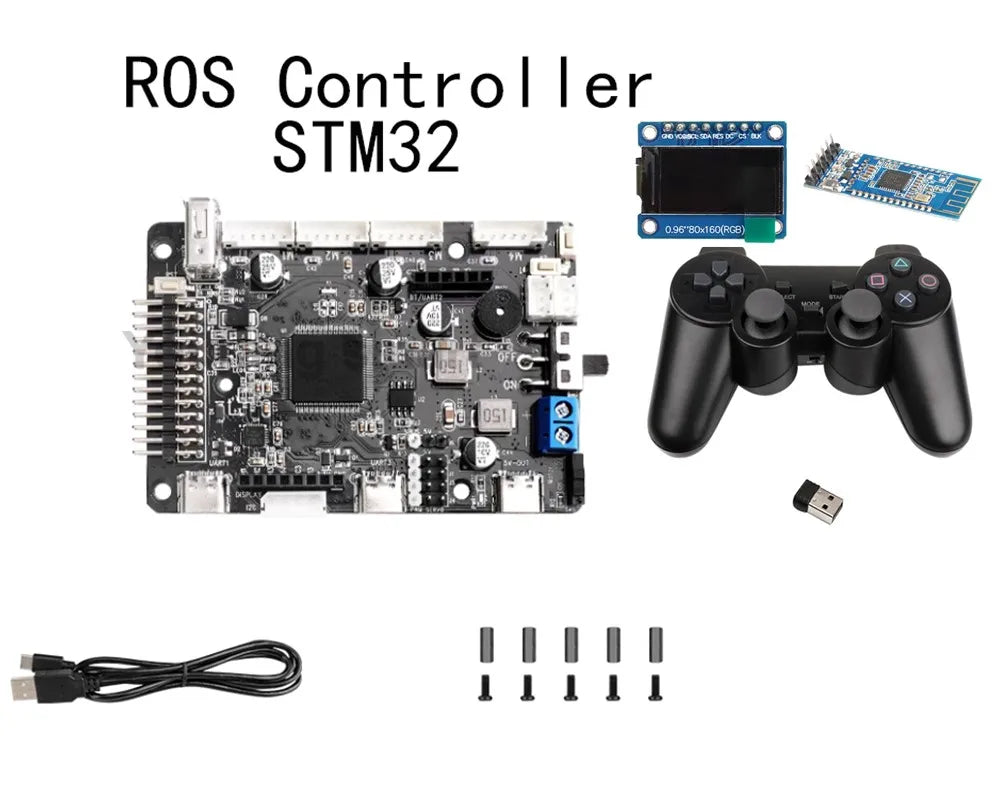

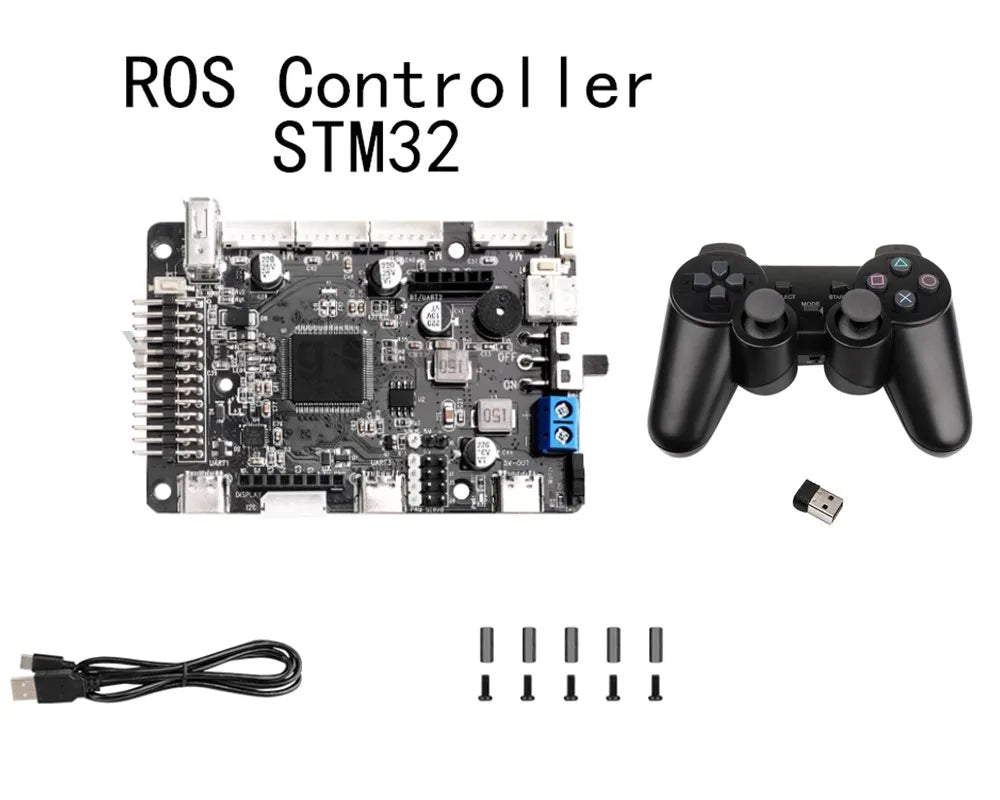

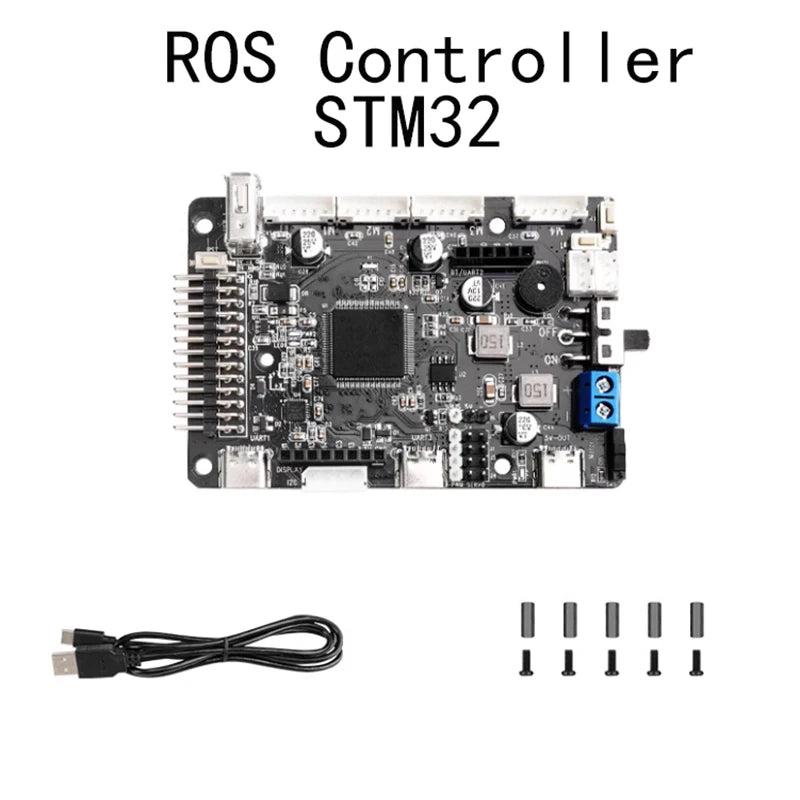

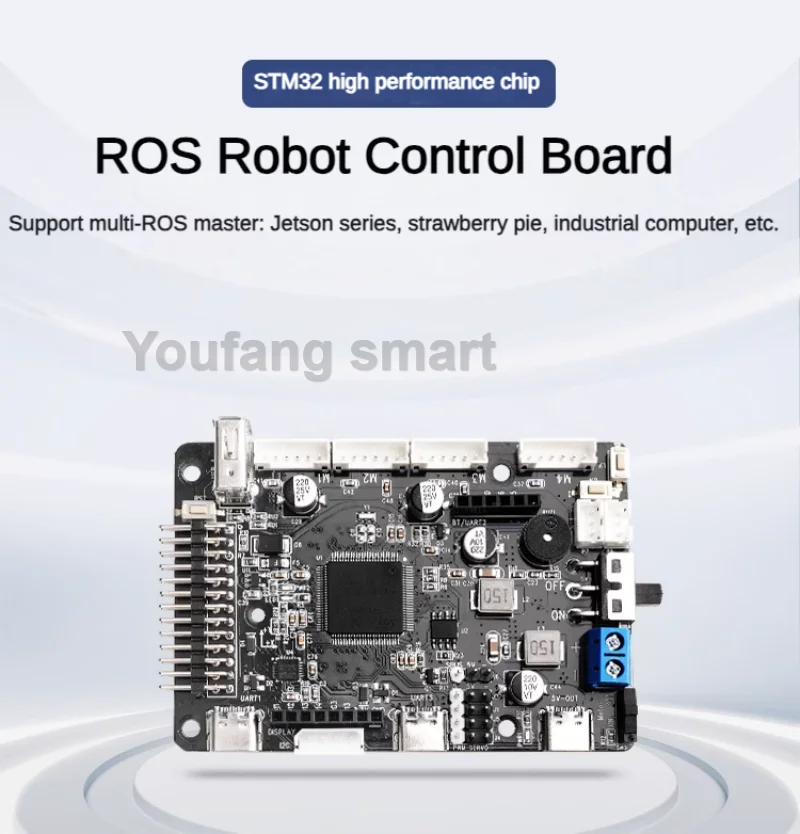

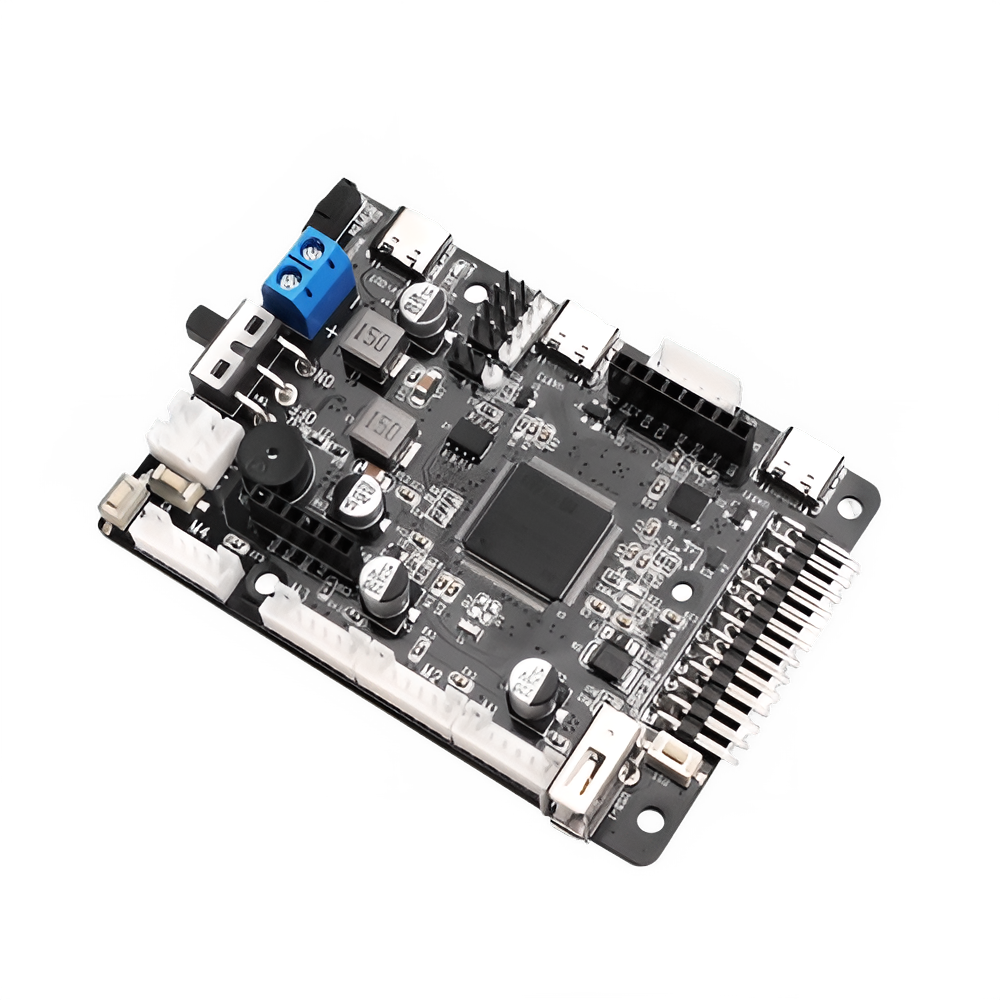

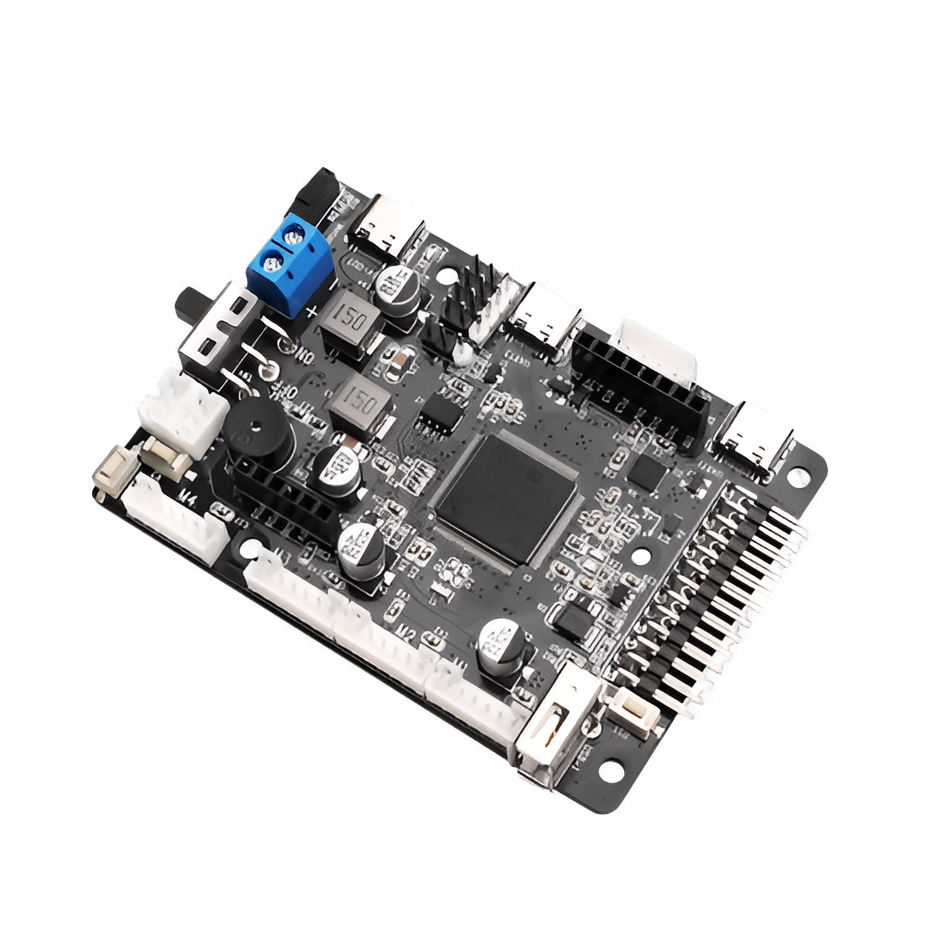

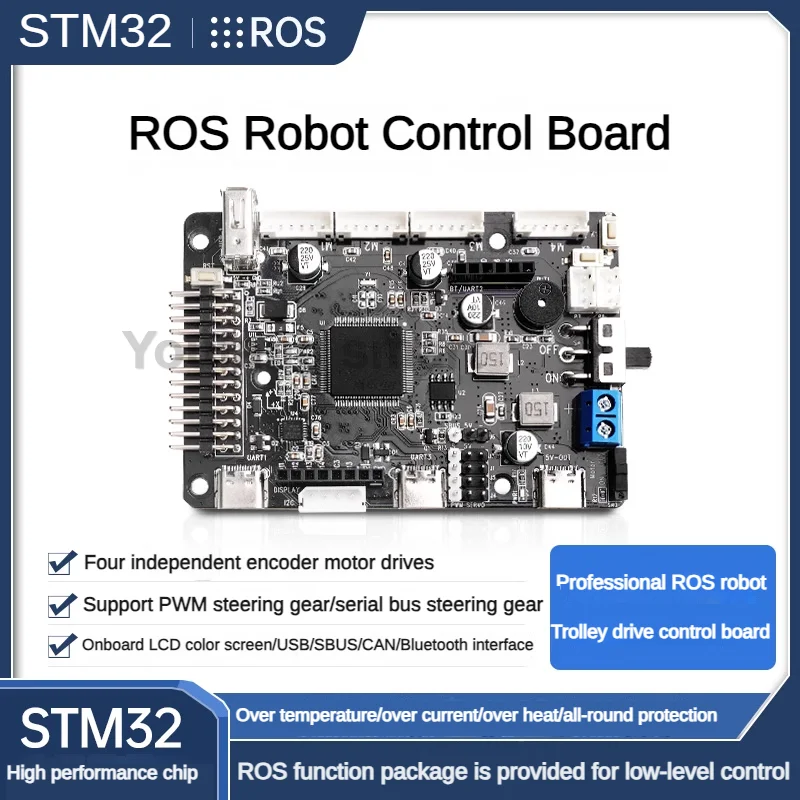

ROS Robot Control Board with STM32 Supports 4-Channel Encoder Motor and 4 Channel Servos Compatible JETSON Raspberry Pi Robot

Youfang Smart is smarter, tech, and healthier

We are the sales No.1 in robot industry sales and specializing in science and technology, science and technology, education, teaching and development. This mother board is a new, very intelligent mother board designed by our college, and it is also the enlightenment of children and engineers learning and education, we will release more new products of science and technology, education and health from time to time, which can be used as children's toy gifts, adult learning demonstration boards. I'm sure you'll love our mother board.

By the way, if you like our store, Please add our store to your Favorite Stores, You can getour New arrival and Discount information in time

ROS Robot Control Board with STM32 Supports 4-Channel Encoder Motor and 4 Channel Servos Compatible JETSON Raspberry Pi Robot

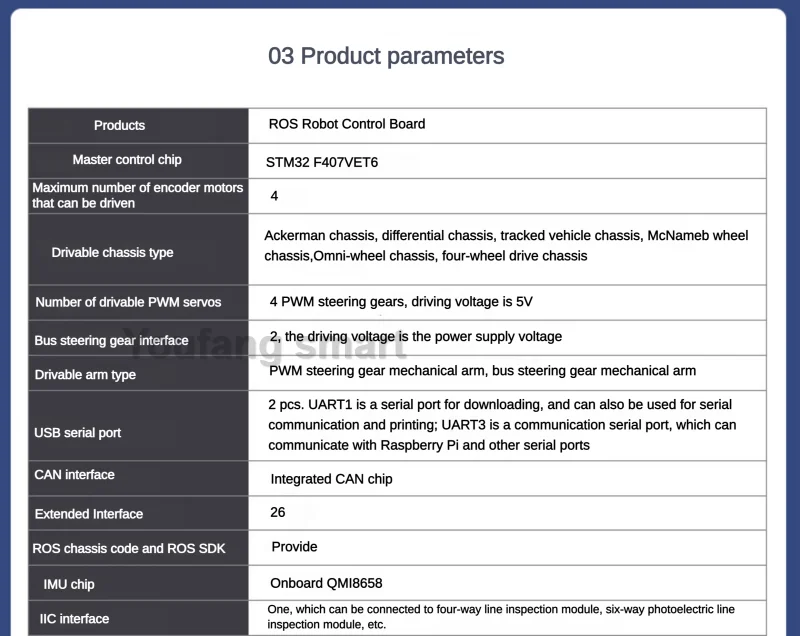

Title: ROS robot controller motor drive STM32 expansion board 4WD radar intelligent trolley servo control board

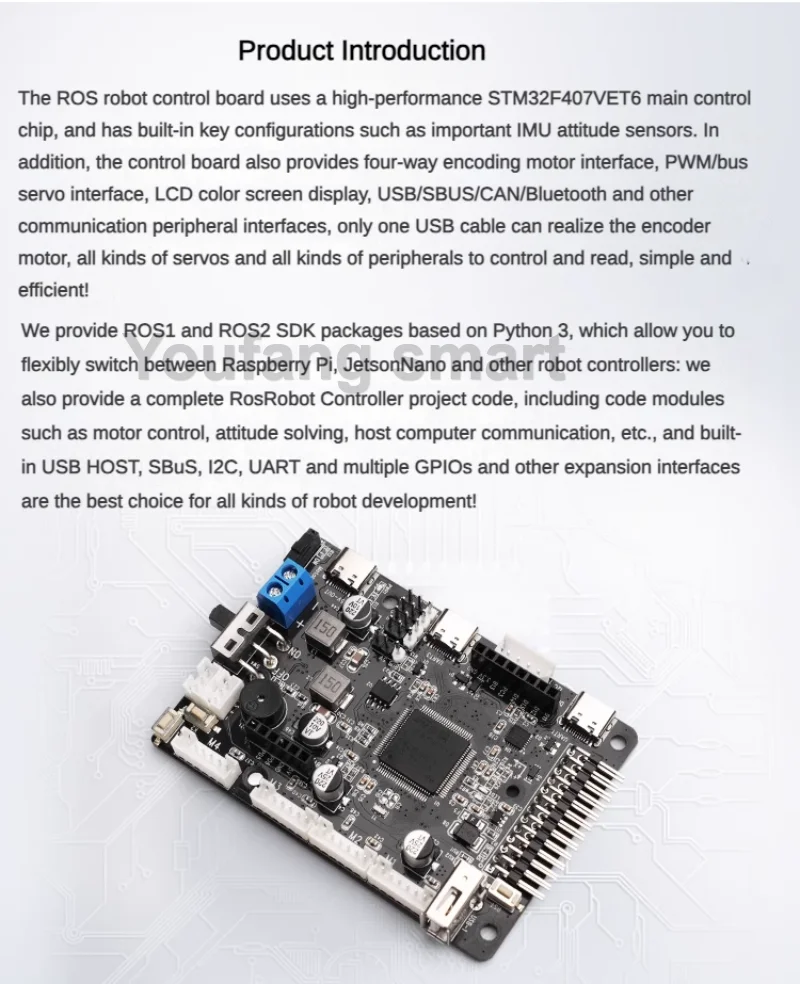

Product: ROS Robot Control Board

Main Control Chip: STM32 F407VET6

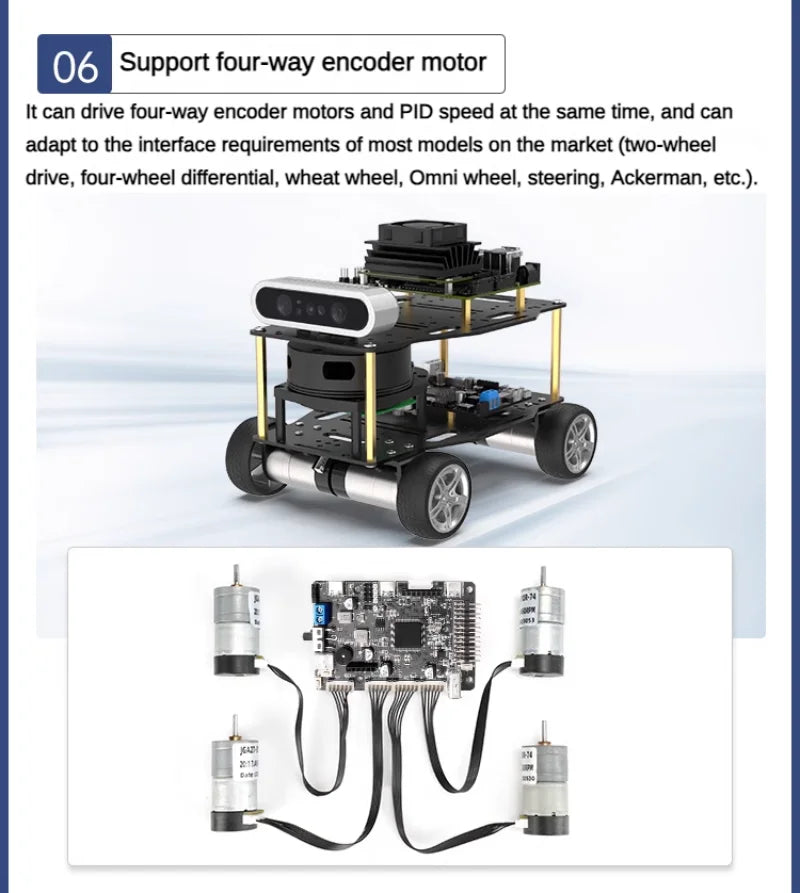

Maximum Number of Encoder Motors Supported: 4

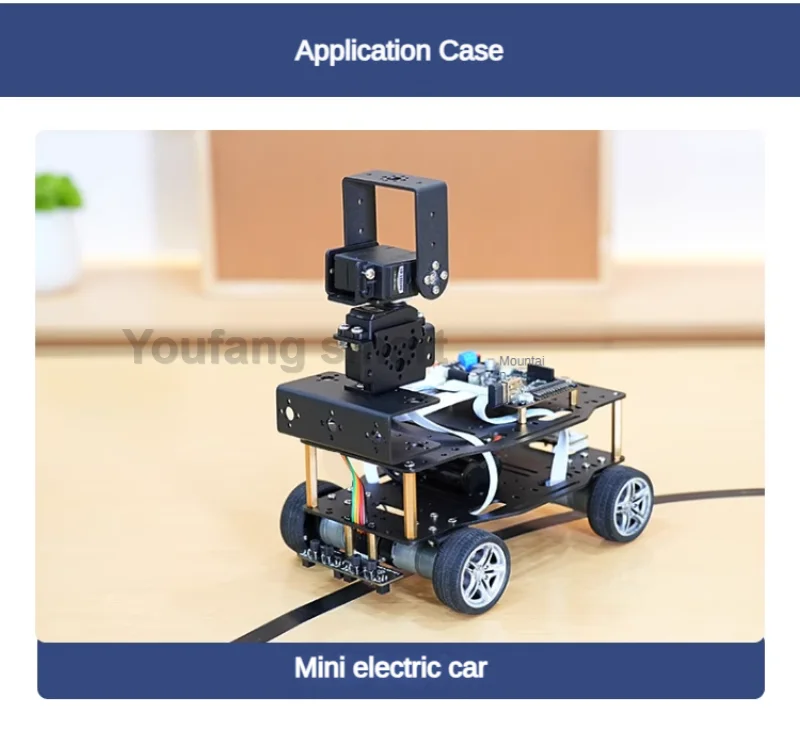

Supported Chassis Types: Ackermann chassis, differential drive chassis, tracked vehicle chassis, Mecanum wheel chassis, omnidirectional wheel chassis, 4WD chassis

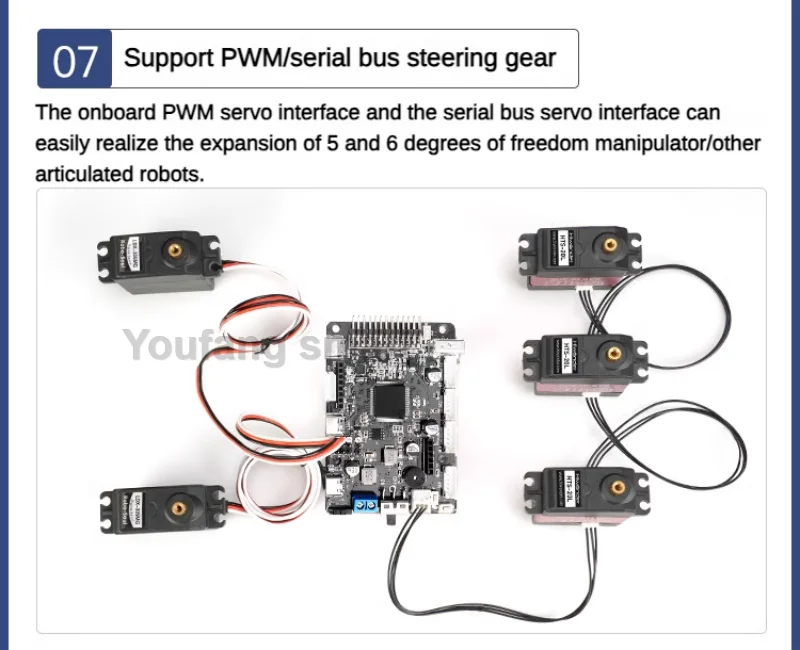

Number of PWM Servos Supported: 4 (5V drive voltage)

Bus Servo Interfaces: 2 (drive voltage matches power supply voltage)

Supported Robotic Arm Types: PWM servo robotic arm, bus servo robotic arm

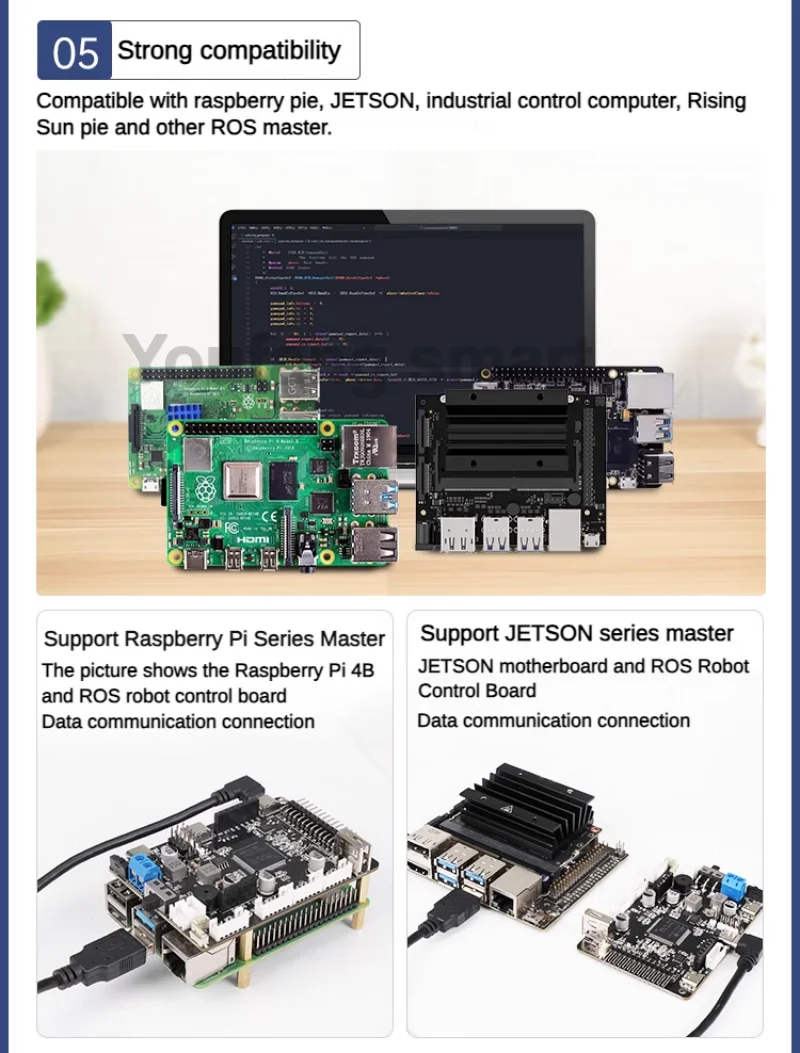

USB Serial Ports: 2 (UART1 for firmware download and serial communication/printing; UART3 for communication with devices like Raspberry Pi)

CAN Interface: Integrated CAN chip

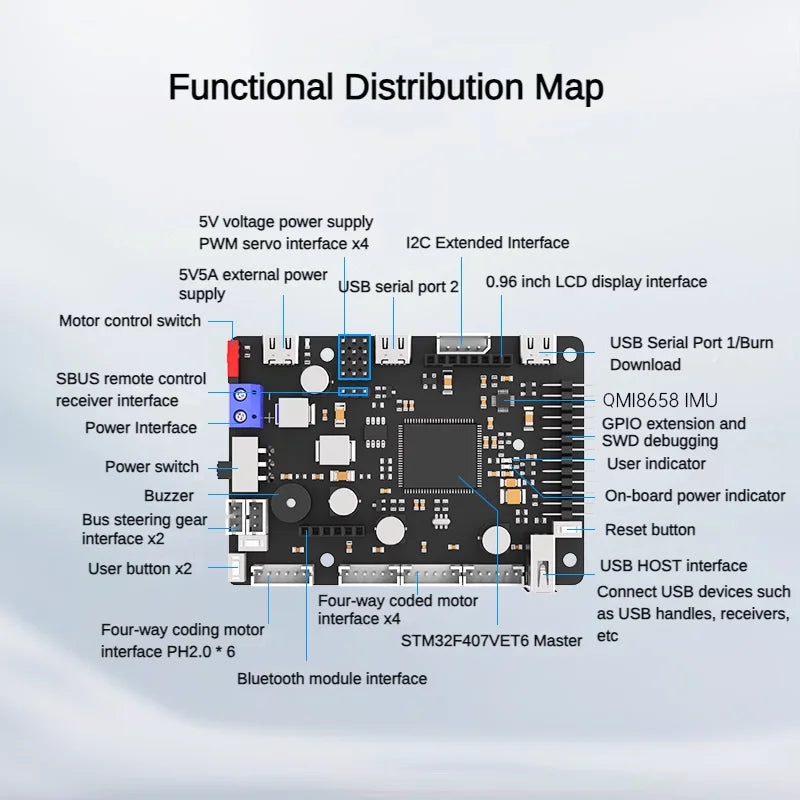

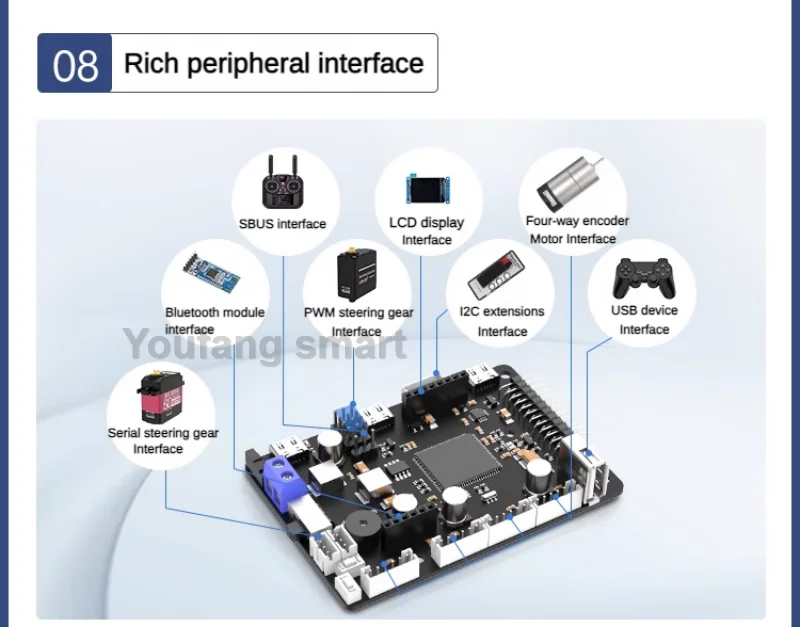

Expansion Interfaces: 26

ROS Chassis Code & ROS SDK: Provided

IMU Chip: Onboard QMI8658

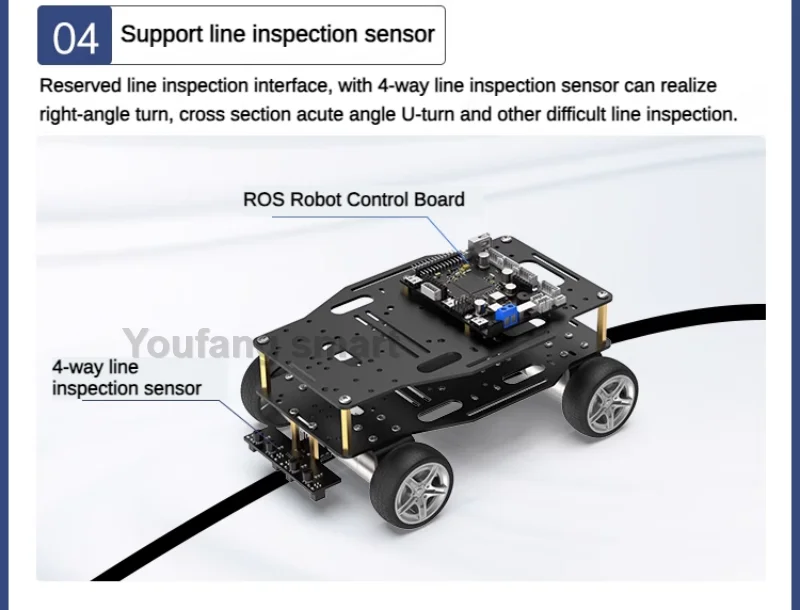

I2C Interface: 1 (supports modules like 4-channel line tracking or 6-channel photoelectric line tracking)

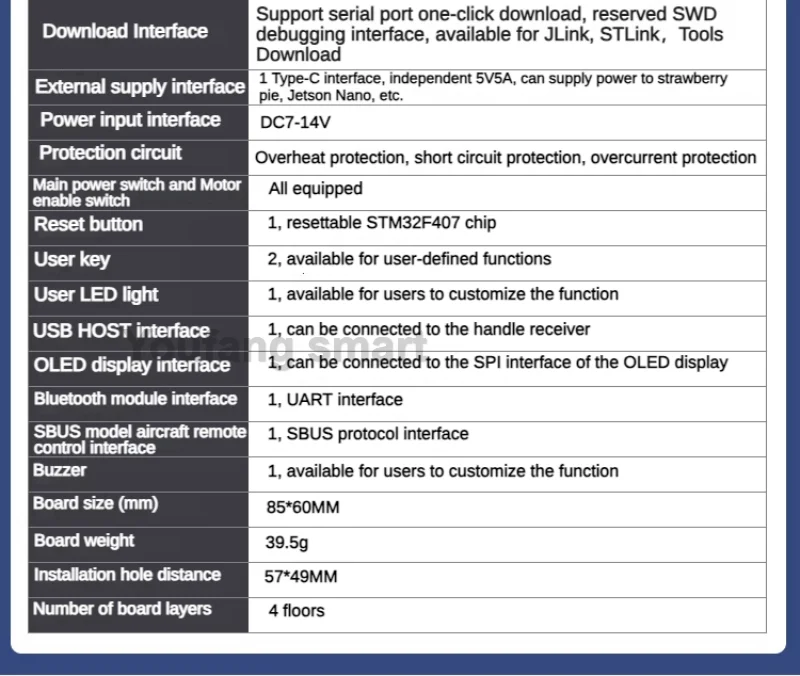

Download Interface: Supports one-click serial download; reserved SWD debug interface for JLink/STLink tools

External Power Supply Interface: 1 × Type-C (independent 5V/5A output for Raspberry Pi, Jetson Nano, etc.)

Power Input Interface: DC 7-14V

Protection Circuits: Overheat protection, short-circuit protection, overcurrent protection

Main Power Switch & Motor Enable Switch: Both included

Reset Button: 1 (resets STM32F407 chip)

User Buttons: 2 (customizable functions)

User LED: 1 (customizable function)

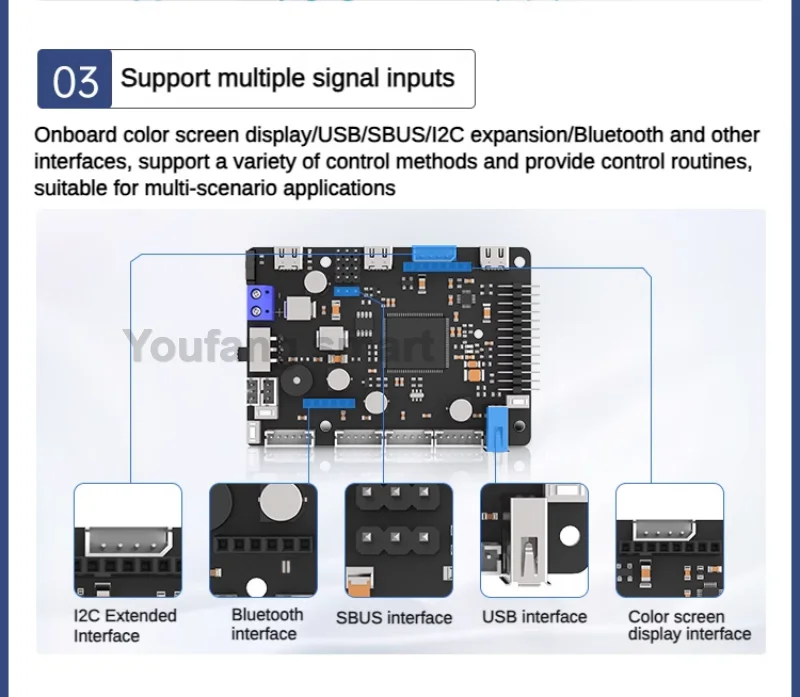

USB HOST Interface: 1 (for gamepad receivers)

OLED Display Interface: 1 (supports SPI OLED displays)

Bluetooth Module Interface: 1 (UART interface)

SBUS RC Receiver Interface: 1 (SBUS protocol)

Buzzer: 1 (customizable function)

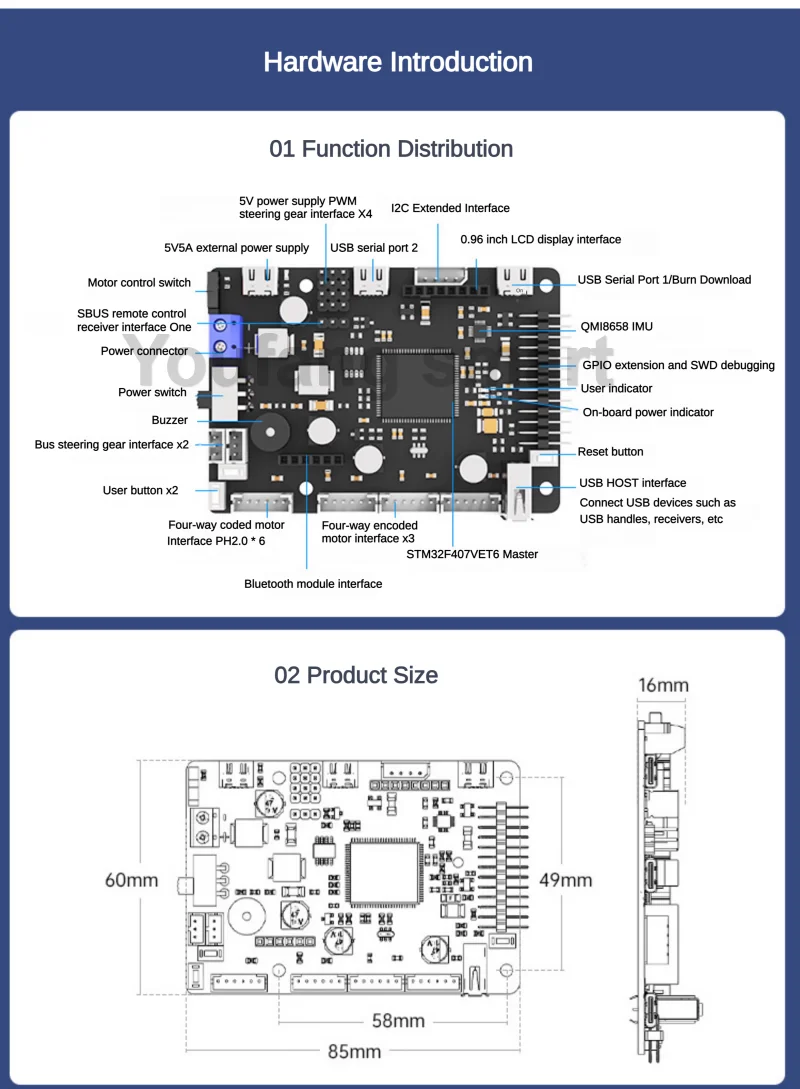

Board Dimensions (mm): 85 × 60

Board Weight: 39.5g

Mounting Hole Spacing (mm): 57 × 49

PCB Layers: 4

Note:

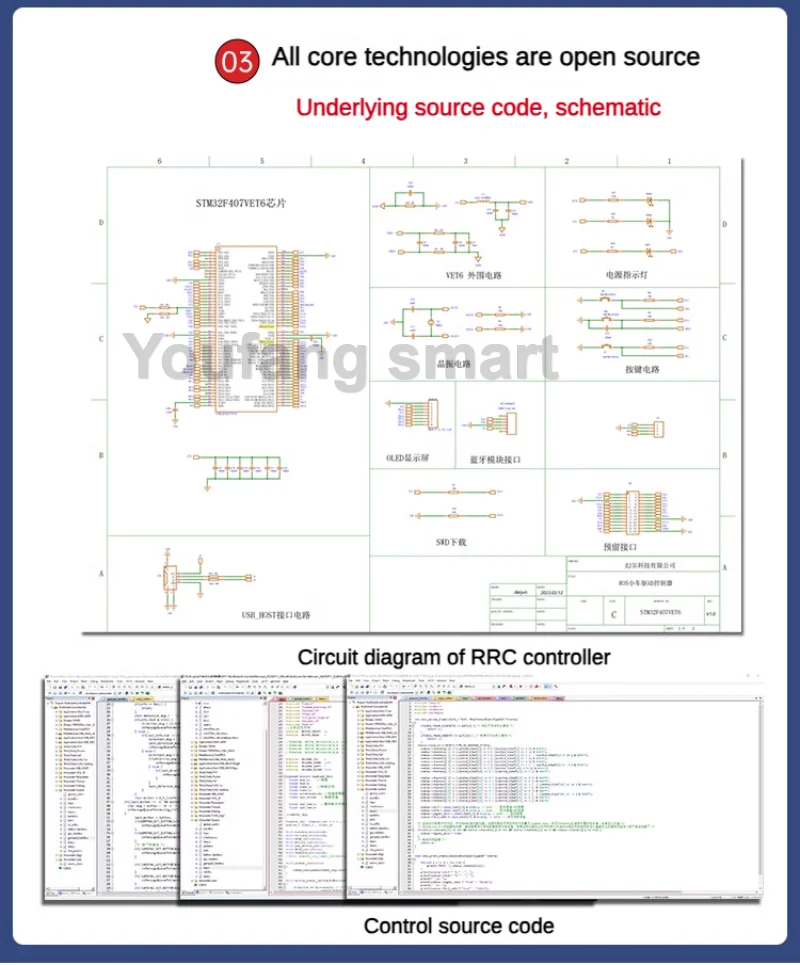

1.We offer the source code and manual.

2. Technical documentation can be provided to you free of charge, please contact us.
